EPON ONU BOSA Module

EPON ONU BOSA is coupled with 1310nm FP uncooled laser and PIN-TIA, which can meet high reliability and stability for EPON network.

Product features
Single Fiber Bi-Directional Module Integrated 1310/1490nm WDM Filter Low Threshold Current
FP uncooled laser diode Optical Isolation>30dB
Cross Talk<-47dB RoHS Compliant Products Available
Details

Parameters:
1310nm transmitter:
Center wavelength: 1290nm (Min.) 1310nm (Typ.) 1330nm (Max.) FP laser
Threshold current: 7ma (typ.) 15mA (max.)
Spectral width: 5nm (Max.)
Output power: 1.2mW (Min.) 2.0MW (Max.)
1490nmapd-tia receiver
Detection range: 1480 ~ 1500nm
Operating voltage: 3.3V (typical value)
Supply current: 28ma (typical value)
Operating temperature: - 20 ° C ~ + 70 ° C



Dimension：

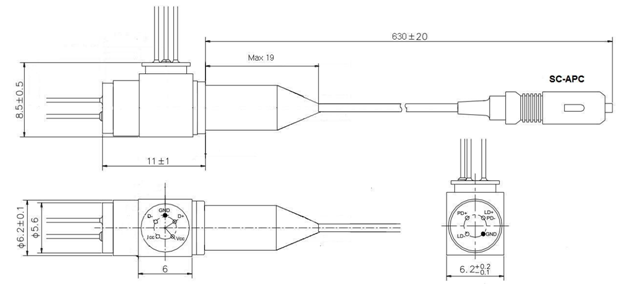

Pigtail Package:

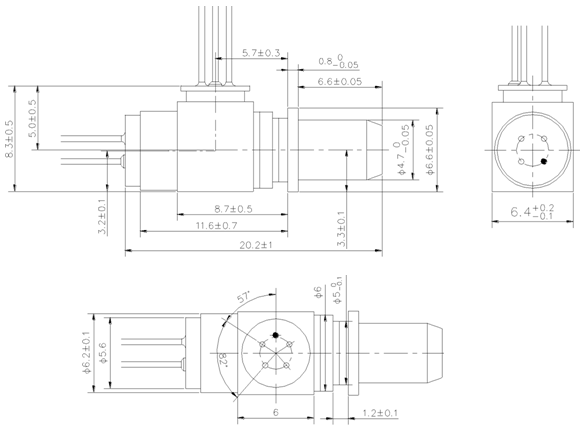

Recepetacle Package
